ISTANBUL - HAYDARPASA PORT
|
|
Istanbul - Haydarpasa Port Situated in the Marmara Sea on the Anatolian side of the Istanbul Strait. The port is protected by two breakwaters. The largest port in Istanbul.
|
| Authority | General Directorate of Turkish State Railways (TCDD) Phone: (90-216) 348 8020 Port Pilot: (90-216) 333 05 33 Fax: (90-216) 345 17 05 Harbour Master Phone: (90-212) 249 2197 Turk Radio Phone: (90-212) 579 0583 or 579 0503 |
| Pilotage | Compulsory (Berthing/Unberthing) Phone: (90-216) 334 6142 |
| Towage | One tugboat compulsory for vessels of upto 5,000 GRT Two tugboats compulsory for vessels of upto 15,000 GRT Three tugboats compulsory for vessels more than 15,000 GRT |
| Storage Area | Open: 141,645 m2, Covered: 29,808 m2, Grain Silo: 75,000 MT |
| Water Density | 1.014 - 1.016 |
| Additional Info | Service is provided to vessels 24 hours a day (3 shifts). The space for container terminal is nearly 100,000 m2. The holding capacity being 6,000 TEUs (full and empty). Also there are two areas hired outside the port for stacking the empty containers. New modern RO/RO terminal in service. Several state hospitals and 24 hours sea ambulance (motorboat) service is available. |
| Airport | The nearest airport is in Istanbul (20 km.) |
| Repairs | Full facilities at Tuzla Shipyards |
| Fresh Water | Available |
| Provisions | Available |
| Bunker | Available |

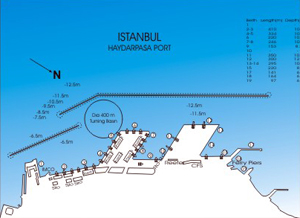

Quays
| BERTH | LOA | BEAM | DRAFT | EQUIPMENT | |
| 1 | 80 m | Unrestricted | 4.50 m | Railway | Wagon Movements |
| 2 | 210 m | Unrestricted | 5 to 7.5 m | Cr. 1x5 t | Gen. Cargo |
| 3 | 190 m | Unrestricted | 8 to 9.5 m | Conveyor | Grain |
| 4 + 5 | 334 m | Unrestricted | 9.00 m | Cr. 2x5 + 2x3 t | Gen. Cargo |
| 6 | 220 m | Unrestricted | 9.30 m | Cr. 1x5 + 1x25 t | Gen. Cargo |
| 7 + 8 | 246 m | Unrestricted | 9.00 m | Cr. 1x5 + 3x3 t | Gen. Cargo |
| 9 | 220 m | Unrestricted | 7.00 m | None | Gen. Cargo |
| 10 | 100 m | Unrestricted | 7.00 m | None | RO/RO |
| 11 | 250 m | Unrestricted | 10.00 m | Cr. 2x5 t | Container |
| 12 | 300 m | Unrestricted | 11.00 m | 2 Gantry Cr. | Container |
| 13 + 14 | 295 m | Unrestricted | 7 to 9.00 m | Cr. 1x35 + 2x10 t | Container |
| 15 | 220 m | Unrestricted | 7.00 m | Cr. 2x5 t | Gen. Cargo |
| 16 | 160 m | Unrestricted | 6.00 m | None | Gen. Cargo |
| 17 | 141 m | Unrestricted | 8.00 m | None | RO/RO |
| 18 | 164 m | Unrestricted | 6.00 m | None | Gen. Cargo |
| 19 | 97 m | Unrestricted | 6.00 m | None | Gen. Cargo |
